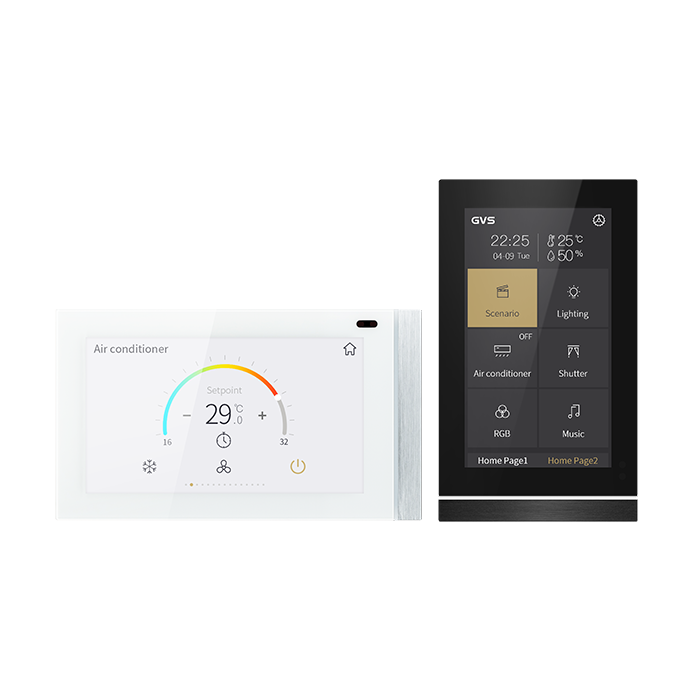

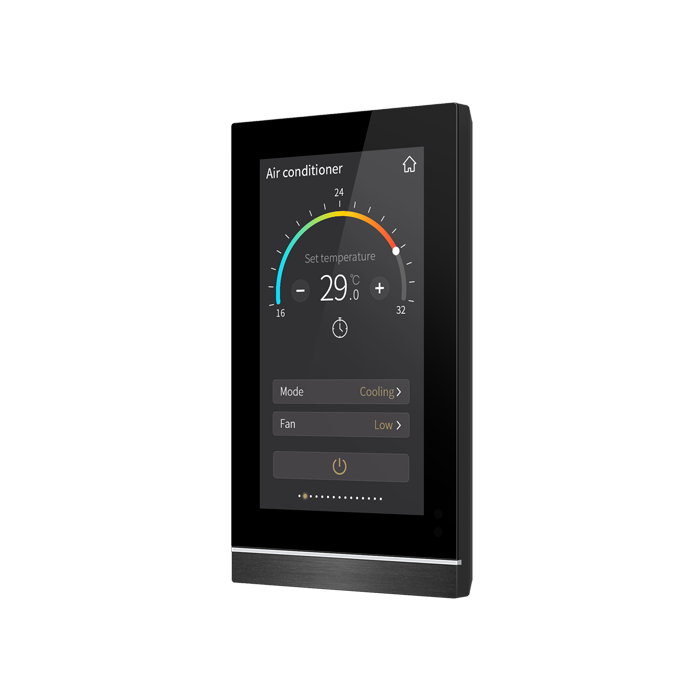

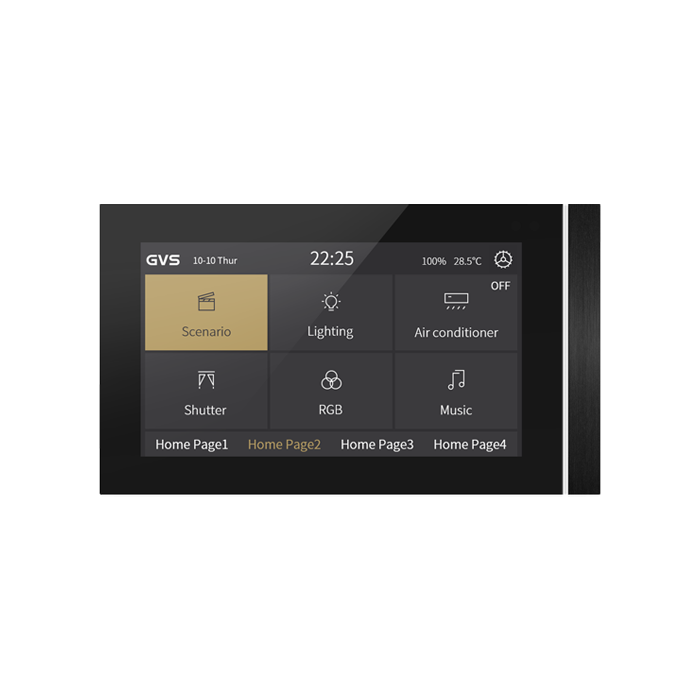

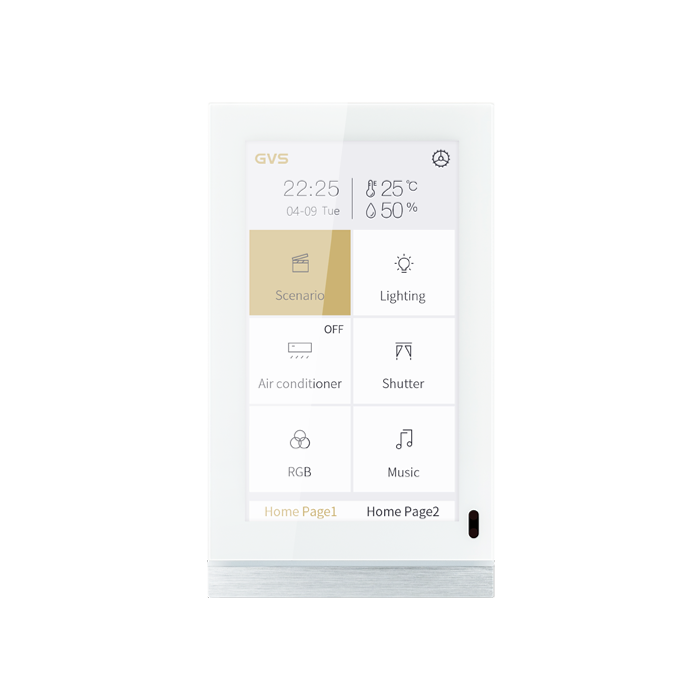

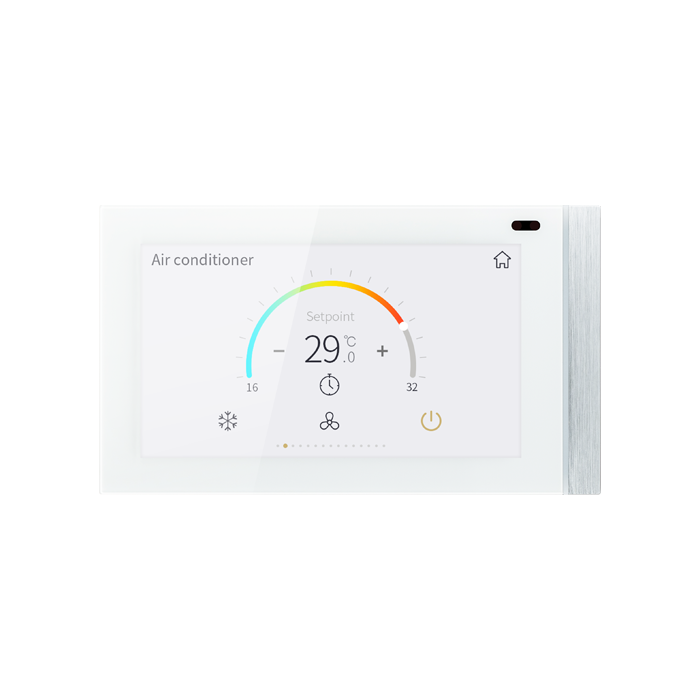

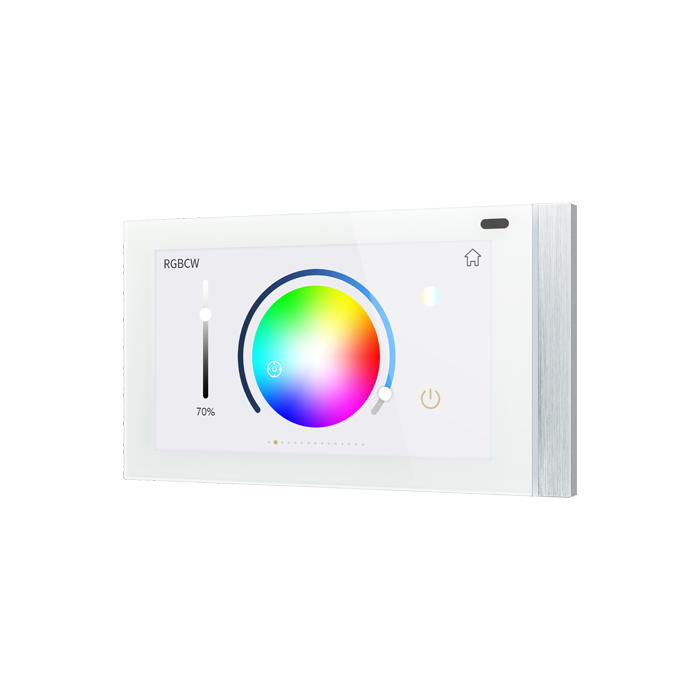

KNX Smart Touch Panel V50s
Description
5" IPS touch panel, resolution 480*854, aluminum faceplate, built-in temperature & proximity sensor, vertical/horizontal adjustable. Full KNX functions: 15 control pages including switch, dimming, shutter, scene control, value sending, RGB, RGBW, RGBCW, Color Temp. control, HVAC, AC, floor heating, ventilation, audio control, energy metering, air quality display. Max.16 timing , 8 group event, 8 logic functions, HCL function. Support icon customization by SD card. Installation: wall mounted, fits in 86*86mm, German 60mm, Swiss/Australian /US standard wall
Product parameter
Weight: 0.3KG
Size: 86 x 148.8 x 11.5mm
Bus voltage: 21-30V DC, via KNX bus
Bus current: 6mA/24V DC, 5mA/30V DC
Bus consumption: <150mW
Voltage: 24-30V DC
Size: 86 x 148.8 x 11.5mm
Bus voltage: 21-30V DC, via KNX bus
Bus current: 6mA/24V DC, 5mA/30V DC
Bus consumption: <150mW
Voltage: 24-30V DC
Current: <99mA/24V DC, <82.5mA/30V DC
Consumption: <2.5W
Operation: –5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%,except for dewing
Consumption: <2.5W
Operation: –5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%,except for dewing
Proximity sensor: Approximately 30cm
Installation: Wall-mounted installation,
install the metal plate onto the 80 or 86
junction box firstly, and then install the
device into metal plate.
Installation: Wall-mounted installation,
install the metal plate onto the 80 or 86
junction box firstly, and then install the
device into metal plate.
Related products
-
N 512C01 – KNX Load switch, 8 x AC 120 V / AC 277 V / AC 347 V‚ 20 A, C load (cUL listed)
DIN-rail mounted device for the KNX lighting control paneleight outputs to switch eight separate groups of... -
MAXinBOX 12. KNX multifunction actuator with KNX Secure – 12 outputs 16A
Multifunction actuator for DIN-rail (6 units) that offers multiple configurations of up to 6 shutter channels,... -
KNX Smart Panel 8 remote access licence, unlimited
Remote access to the building technology via JUNG server in Germany.For further information on the installation please... -
N 526E02 – KNX Switch/dimming actuator 8 x AC 230 V, 16 A, 1…10 V, UL standard
for switching and dimming of eight mutually independent groups (channels) of fluorescent lamps with dimmable electronic... -
MINiBOX 0-10V X2. 2 fold 0-10V analog input/output multifunction module
DIN rail mounting actuator (2 DIN wide) with 2 channels configurable as 0-10 V outputs, 0-10 V inputs... -
MINiBOX 45 v3. Fan coil controller with KNX Secure for 2-pipe unit / 5 inputs A/D
Multifunction actuator for DIN-rail (2 units) with 4 outputs (16 A C-load) which offer multiple configurations as... -
MINiBOX 0-10V X1. 1 fold 0-10V analog input/output multifunction module
DIN rail mounting actuator (2 DIN wide) with 1 channel configurable as 0-10 V output, 0-10 V input... -
Ekinex
5-fold pushbutton with backlit text/symbols and proximity sensor (right-hand version)
Description The Ekinex® 20venti series 5-fold pushbutton is used for on/off control of utility devices, dimming... -
CORE
Eclipse Thermostat Complete Air Conditioner Thermostat
Eclipse Thermostat Complete Air Conditioner Thermostat Multi-functional and Intuitive Functional but not Complicated Most of the multi-functional thermostats... -
KNX Smart Touch Panel V40s
4″ IPS touch panel, resolution 480*480, aluminum faceplate, built-in temperature & proximity sensor. Full KNX functions:... -

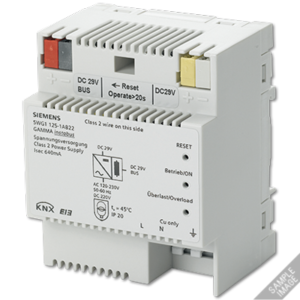

N 125/22 – KNX Power supply unit DC 29 V, 640 mA with additional unchoked output, N 125/22
