KNX Smart Touch Panel KNX Smart Touch S7
Description

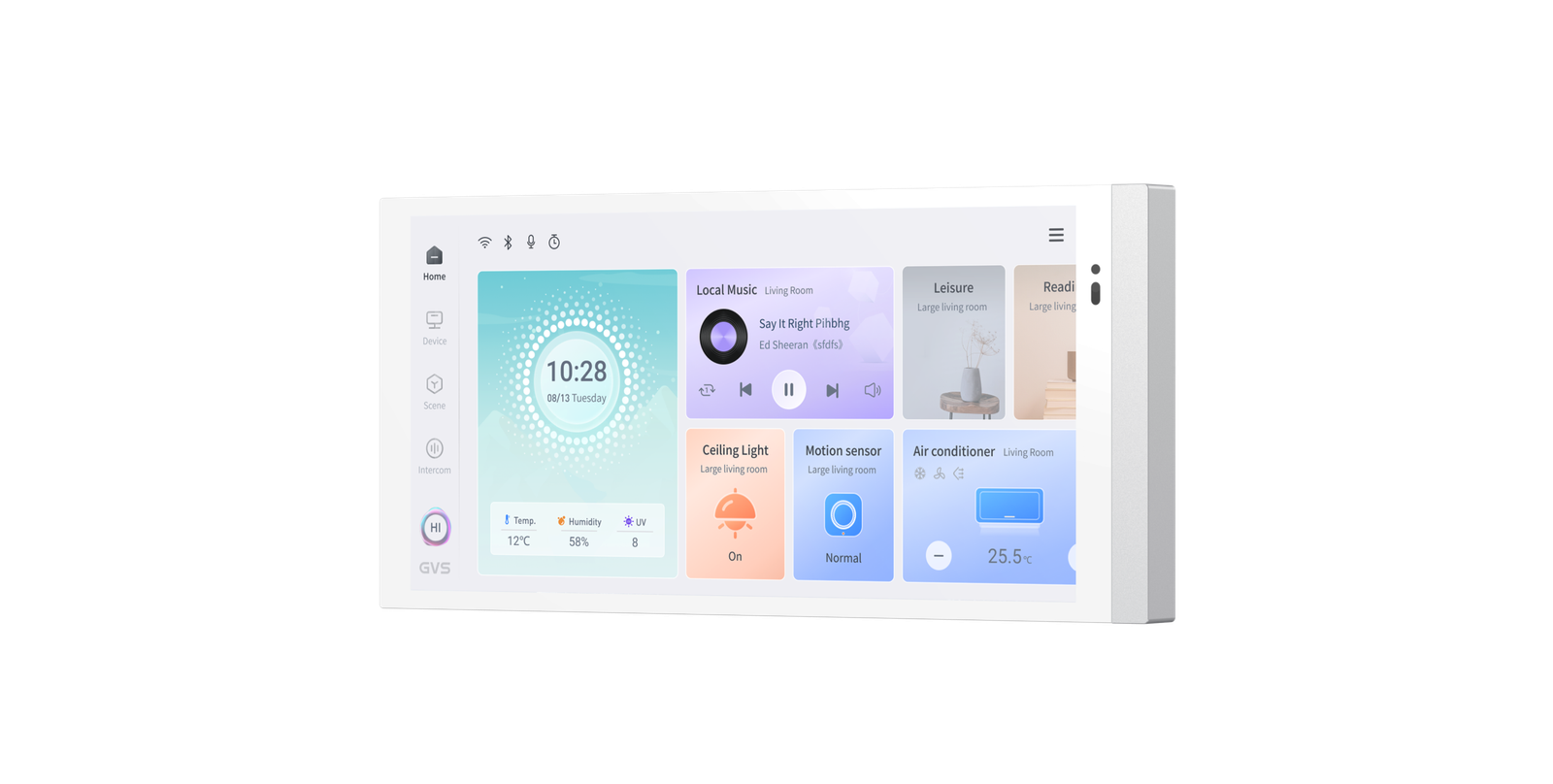

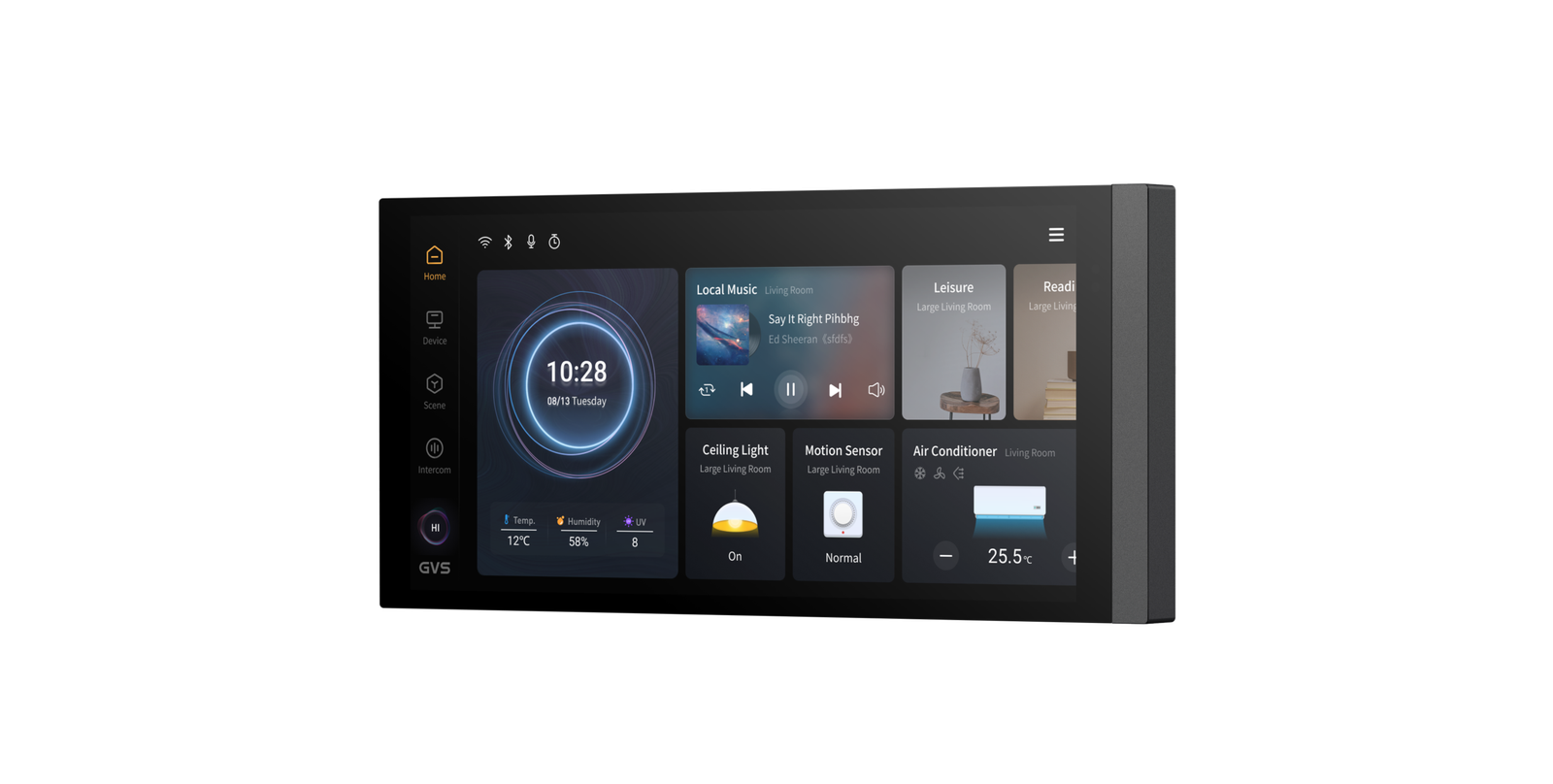

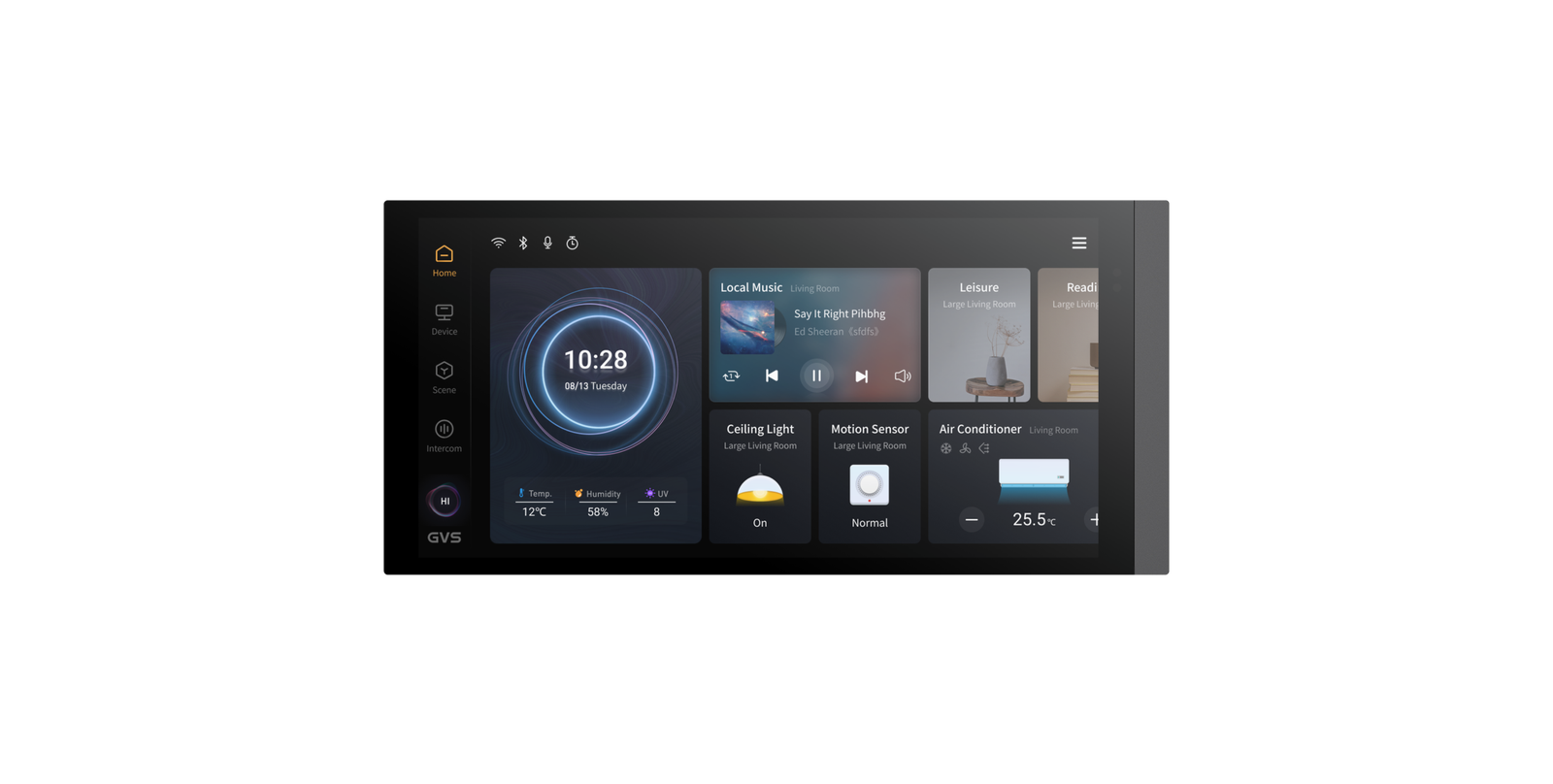

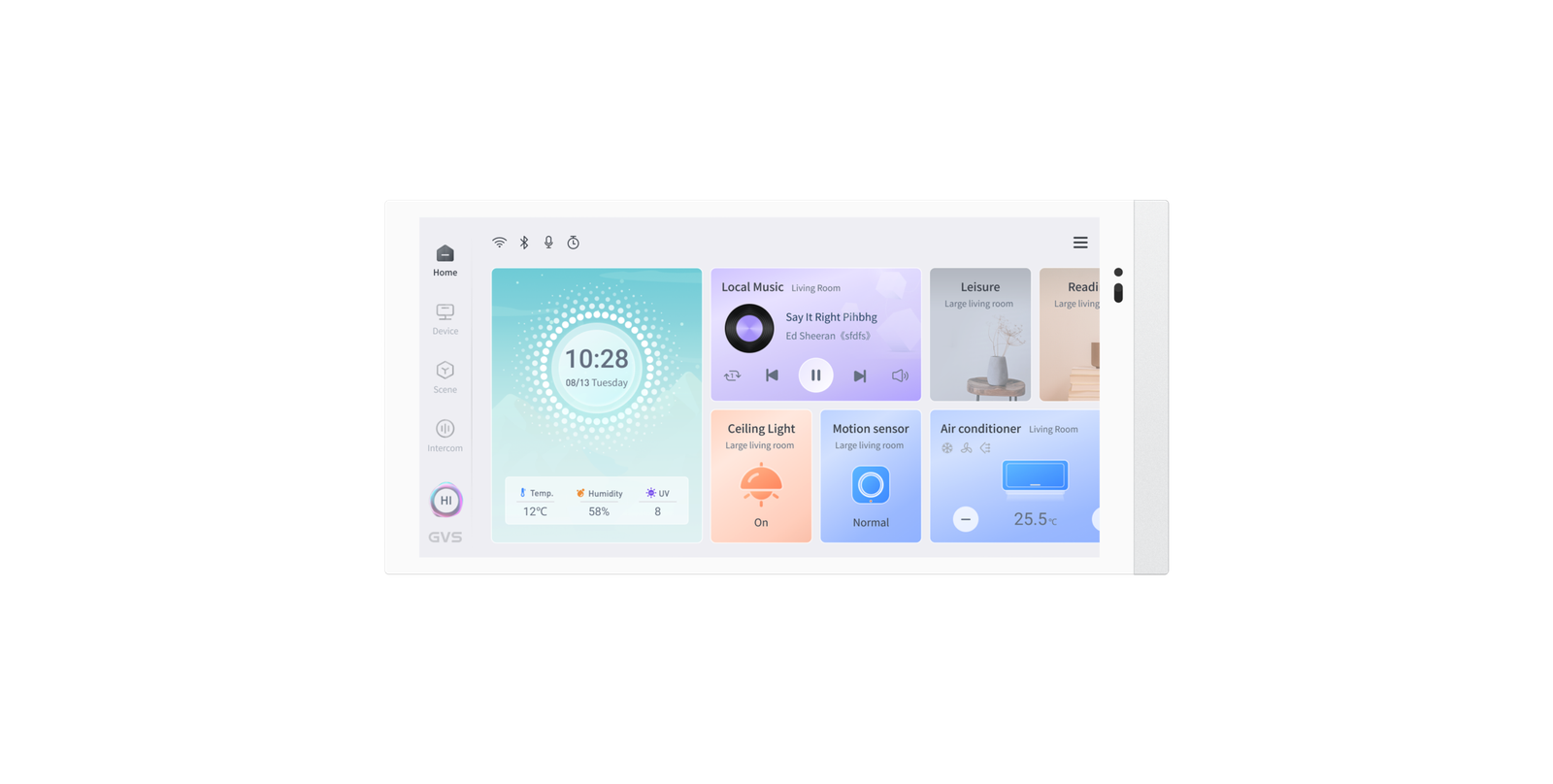

KNX Smart Touch S7 is a 6.9-inch KNX smart control panel with a screen resolution of up to 1440*720.In addition to integrating KNX device control, it also connects to a SIP intercom system, combining indoor and outdoor communication into one entity.
Product parameter
Bus voltage: 21-30V DC，via the KNX bus
Bus current: <3.8mA/24V, <3.4mA/30V
Bus consumption: <0.1W
Bus current: <3.8mA/24V, <3.4mA/30V
Bus consumption: <0.1W
Proximity sensor:Normal:30cm Enhanced:60cm
Temperature sensor:-40-80℃
Humidity sensor:0-100%
Temperature sensor:-40-80℃
Humidity sensor:0-100%
Operation: -5 °C ... +45 °C
Storage: -25 °C ... +55 °C
Transport: – 25 °C ... +70 °C
Humidity: <93%, except dewing
Storage: -25 °C ... +55 °C
Transport: – 25 °C ... +70 °C
Humidity: <93%, except dewing
